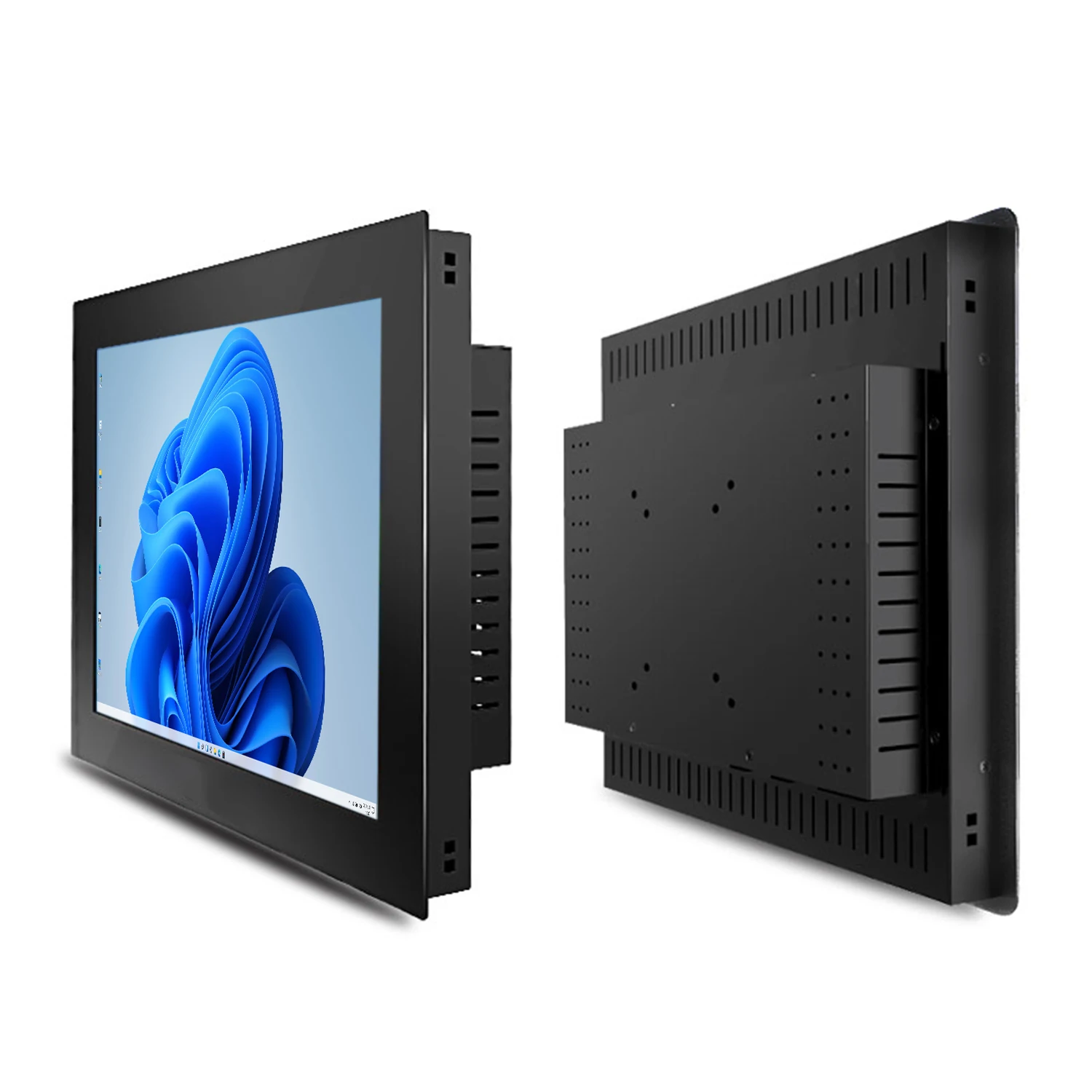

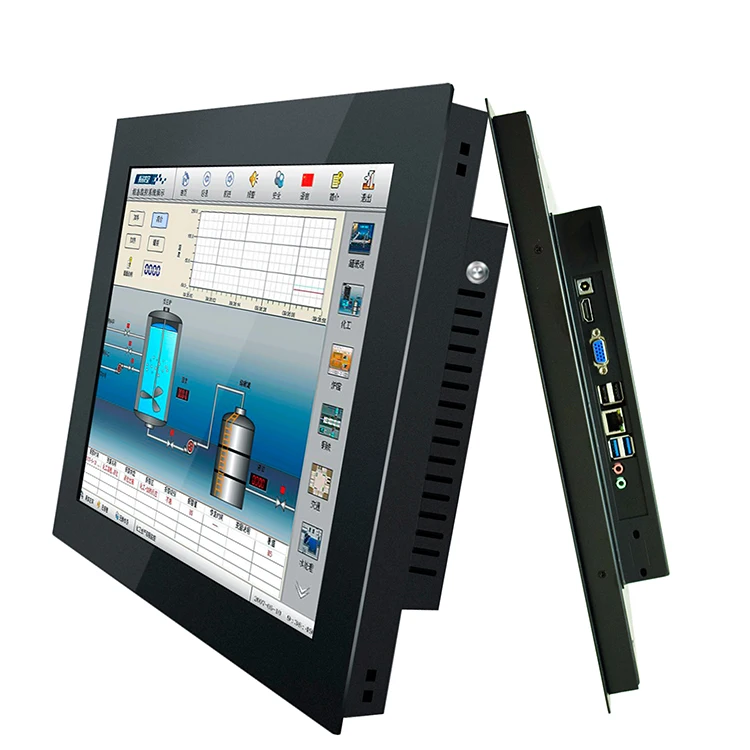

10 12 15 Inch industrial all in one pc computer with resistive touch screen panel pc built-in wifi rs232 com win10 pro 1024*768

Industrial computer parameters

Brand：Balahome
Aterial：Metal
Memory: 4GB/8GB DDR3 System Memory
Storage:32Gb/64Gb/128Gb/256Gb/512Gb/1 TB
System: WIN7/WIN8/WIN10/Liunx optional(Win10 pro is installed by default)
BIOS: AMI BIOS
Graphic: IntelHD Graphics
Color: black (customizable color)
Weight: about 4-6Kgs

System Parameter：

We have many CPU processors to choose from. If you need other CPU processors, please contact our customer service. Thank you

Intel Core i5-3337U (dual core, 3MB cache, clock speed: 1.80-2.7 GHz, TDP power consumption: 17W)
Memory type: Dual channel DDR3/L/- RS 1333/1600
Integrated graphics card Intel HD Graphics 4000

Parameters of LCD Touch screen：

Brightness：250-350cd/m2
Contrast Ratio：1000:1
Viewing Angle：Horizontal(left/right): 150°(75°/75°)
Vertical(up/down): 150°(75°/75°)
Response Time：30 (Typ.)(Tr+Td) (ms)
Frame Rate：60Hz
Color system：PAL/ NTSC
Interface：1 x VGA + 1 x HDMI + 2 * COM (default 232 protocol interface) +1 x RJ45 + 4 * USB + 1 x audio
power requirement of system：+ 12V DC power input
Power adapter：input：AC100〜240V，50 / 60Hz 1.5A MAX
Output：60W Adapter（DC12V — 5A）
Working temperature：-20°C〜60°C
Relative humidity：0％〜90％relative humidity, no condensatio
Plug：AU,EU,USA,UK plug available
Menu Languages：English,,Francais,Italiano,Deutsch,Espanol,Russian,Traditional Chinese, Simplified Chinese,etc
VISA Hole distance：75*75mm

Delivery Time

Sample:1~5 working days.
10~100pcs:2~7 working days.
More than 100pcs :5~15 working days

★★★ SPECIAL REMINDER ★★★

LOGO/Product Model/Case Material/Add Touch Function/Add Built-in Speaker/Add Remote Control Function/Base Style/Screen Size/Interface Type/Power Type/Installation Mode(Wall-hang/Embedded/Open-frame),etc.,can be customized for you(But need to meet the requirements of MOQ).

If you have this demand,please contact us,we will provide you with timely and thoughtful service!

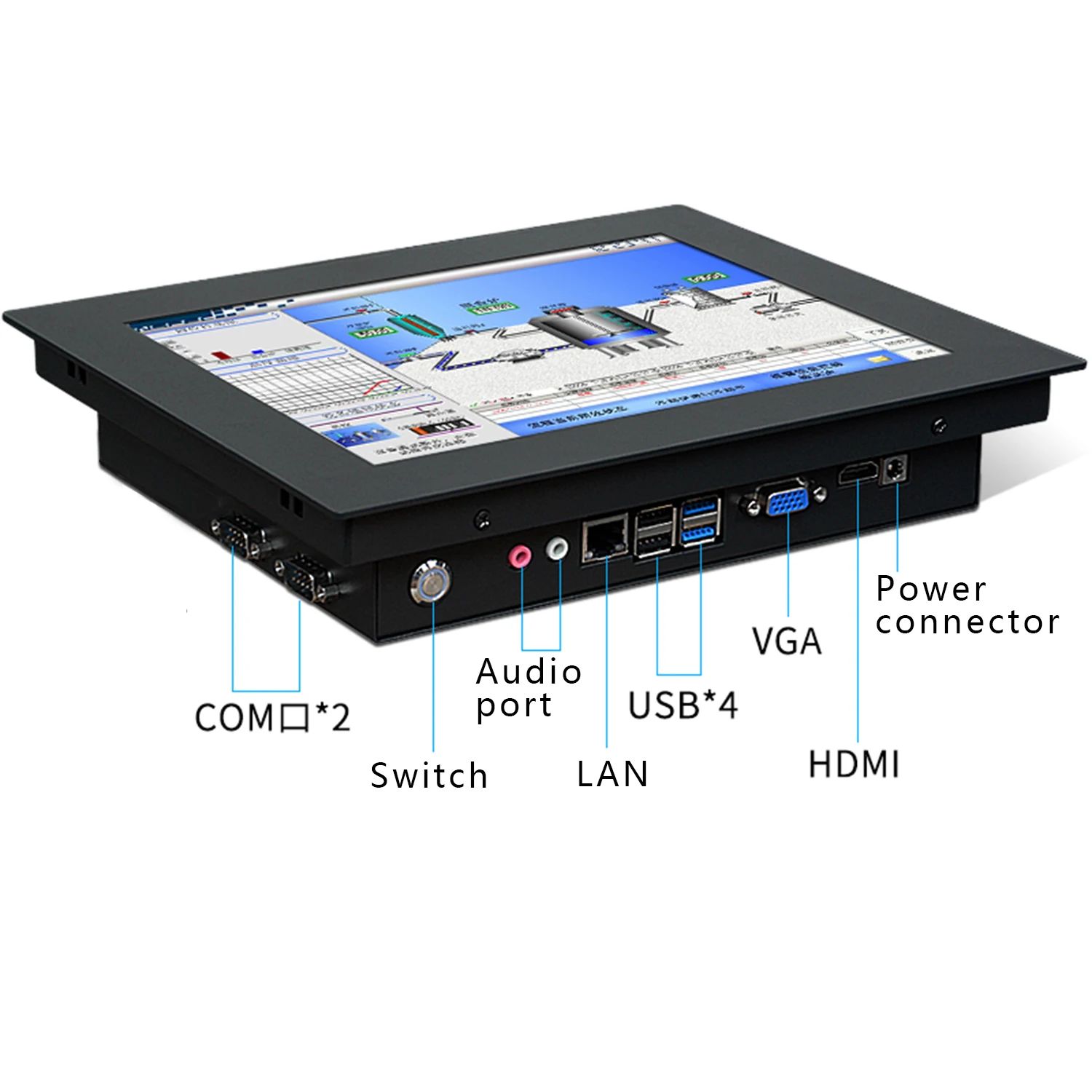

Product interface (support customization)

Backplane I/O interface: 4*USB2.0 interface, 1*HDMI interface, 1*VGAinterface,1*RJ45 Gigabit network interface, 1*Line out (green), 1*Mic (red), 1 *DC 12V power

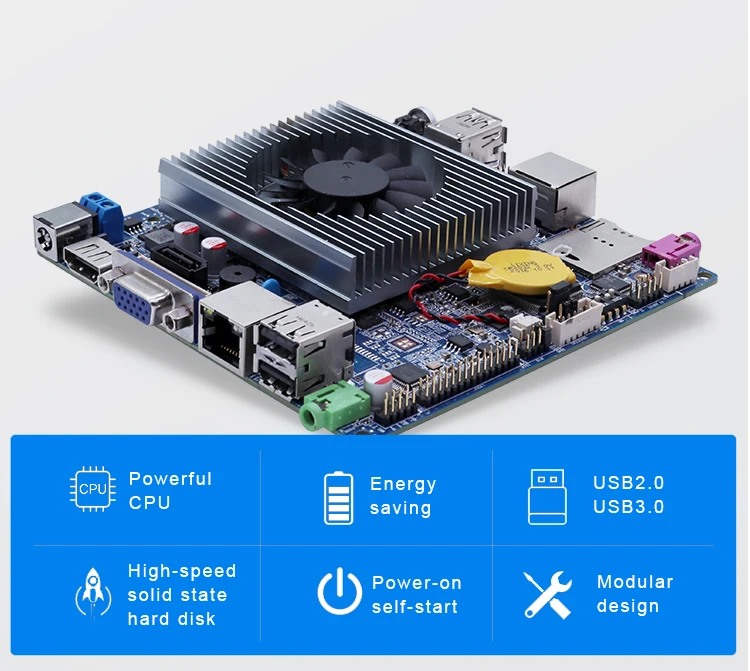

Industrial motherboard performance is more stable

Industrial control-level dedicated motherboard, more stable component performance, low-power chipset to save energy, strong resistance, and stable operation in various complex and harsh environments

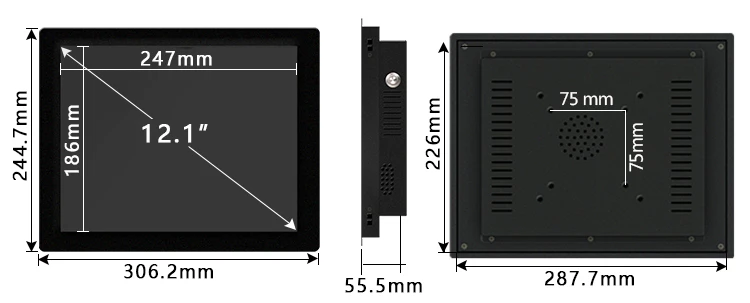

Product Size

Size:10.4 inch Resolution:1024*768 ppi
Size:12.1 inch Resolution:1024*768 ppi
Size:15 inch Resolution:1024*768 ppi

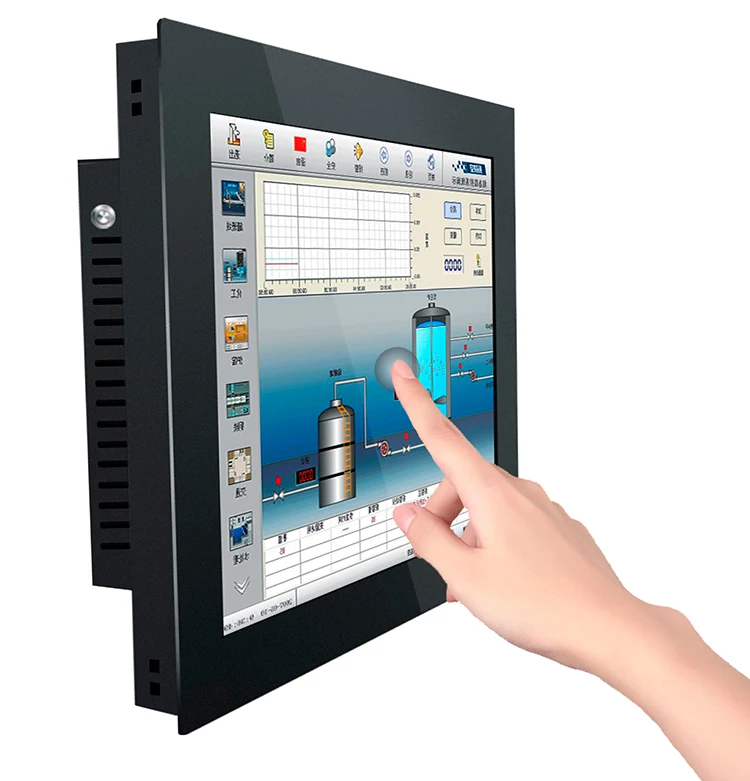

Resistive touch screen, precise touch and sensitive response

High resolution, sensitive surface, smooth and matte surface processing, high stability, mature technology, strong anti-interference, high accuracy and stability of correction, never drifting, touch, no dead corners, long contact life, and can withstand more than 35 million times Safe touch response, rapid touch, no drift

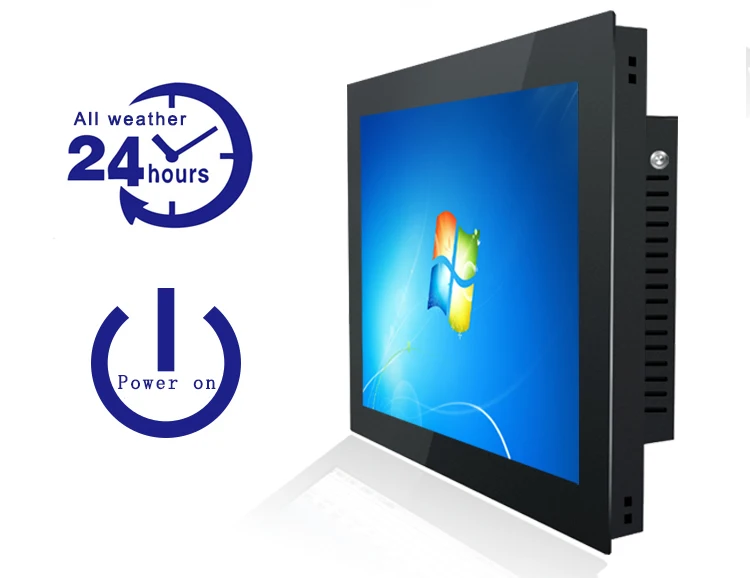

Support power on and run 24 hours a day, 365 days

The whole machine has the ability to run 24 hours a day, and is competent in all walks of life. It can be set to power on through the BIOS. It is suitable for an unstable environment that needs to be continuously powered on.

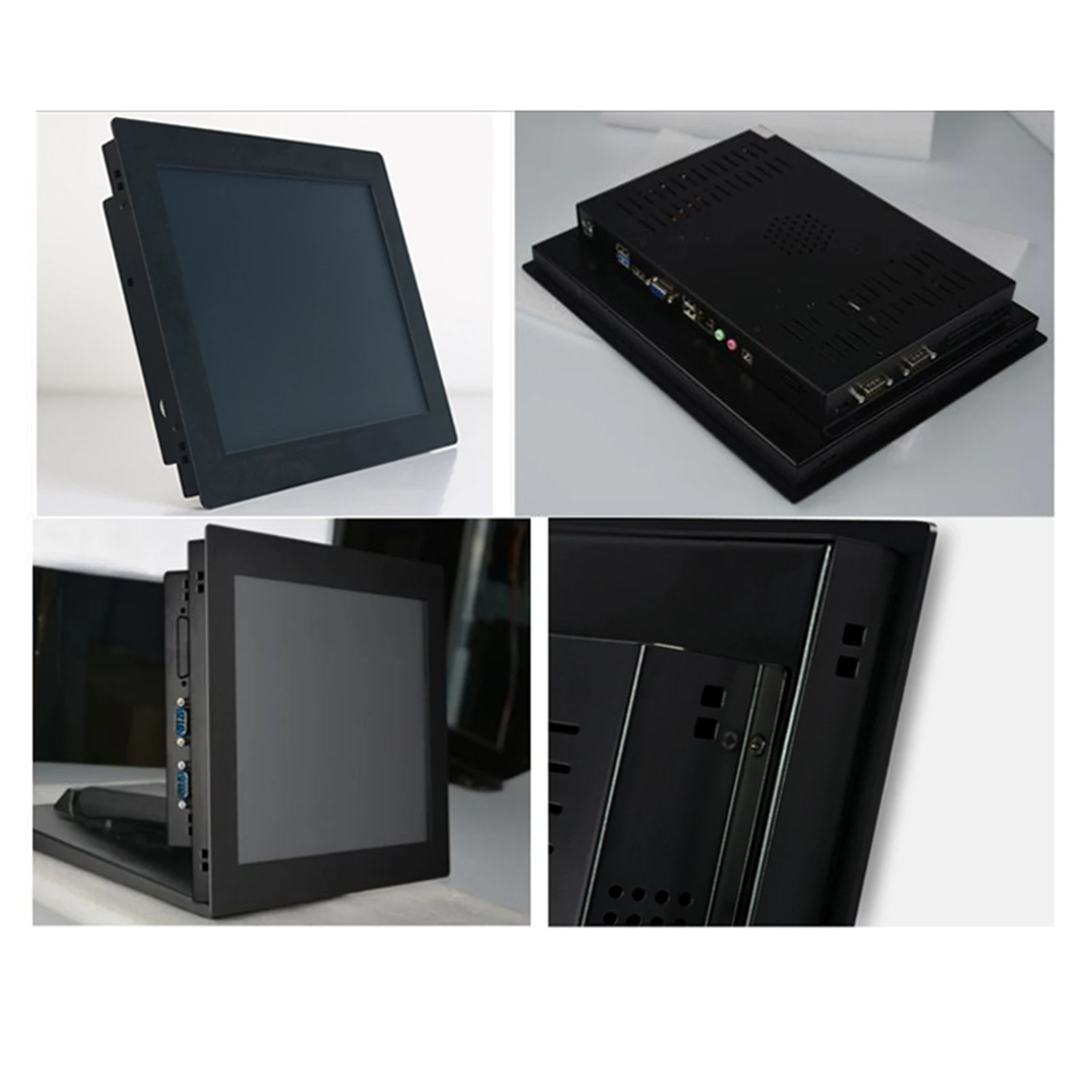

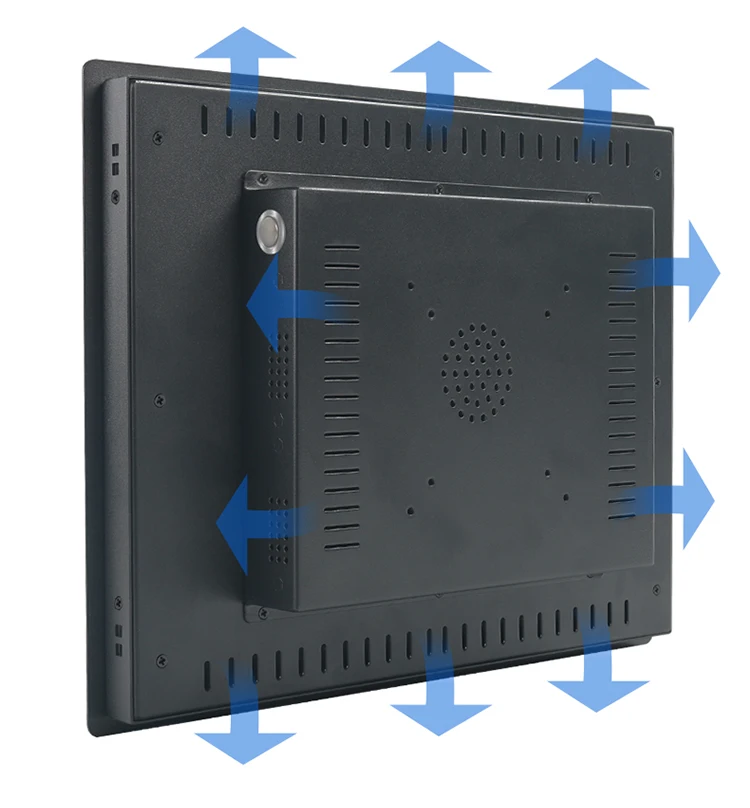

Industrial-grade sheet metal heat dissipation design

High-standard process metal cold-rolled plate body design Multi-row heat dissipation design brings better industrial use experience Fast and quiet heat dissipation

High and low temperature resistant design

The front frame is processed by high-precision CNC, and the steel body is forged by cold-rolling technology, which greatly increases the rigidity and compression resistance of the whole machine. It has been tested by a strict temperature control box and runs stably in harsh environments with large temperature differences. It has passed controllable high temperature testing. The product adapts to temperature between -20℃~60℃, even in harsh environments, there is no fear

Industrial protection technology

Easily adaptable to operate in a variety of harsh environments and meet high operational standards

FAQ (Frequently Asked Questions)

Q: Is the machine waterproof?
A: No, please contact customer service for machines that need waterproofing

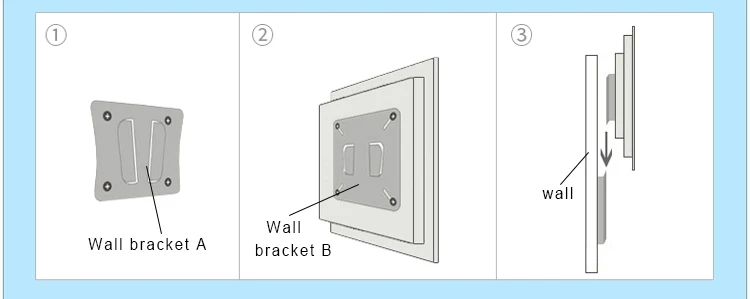

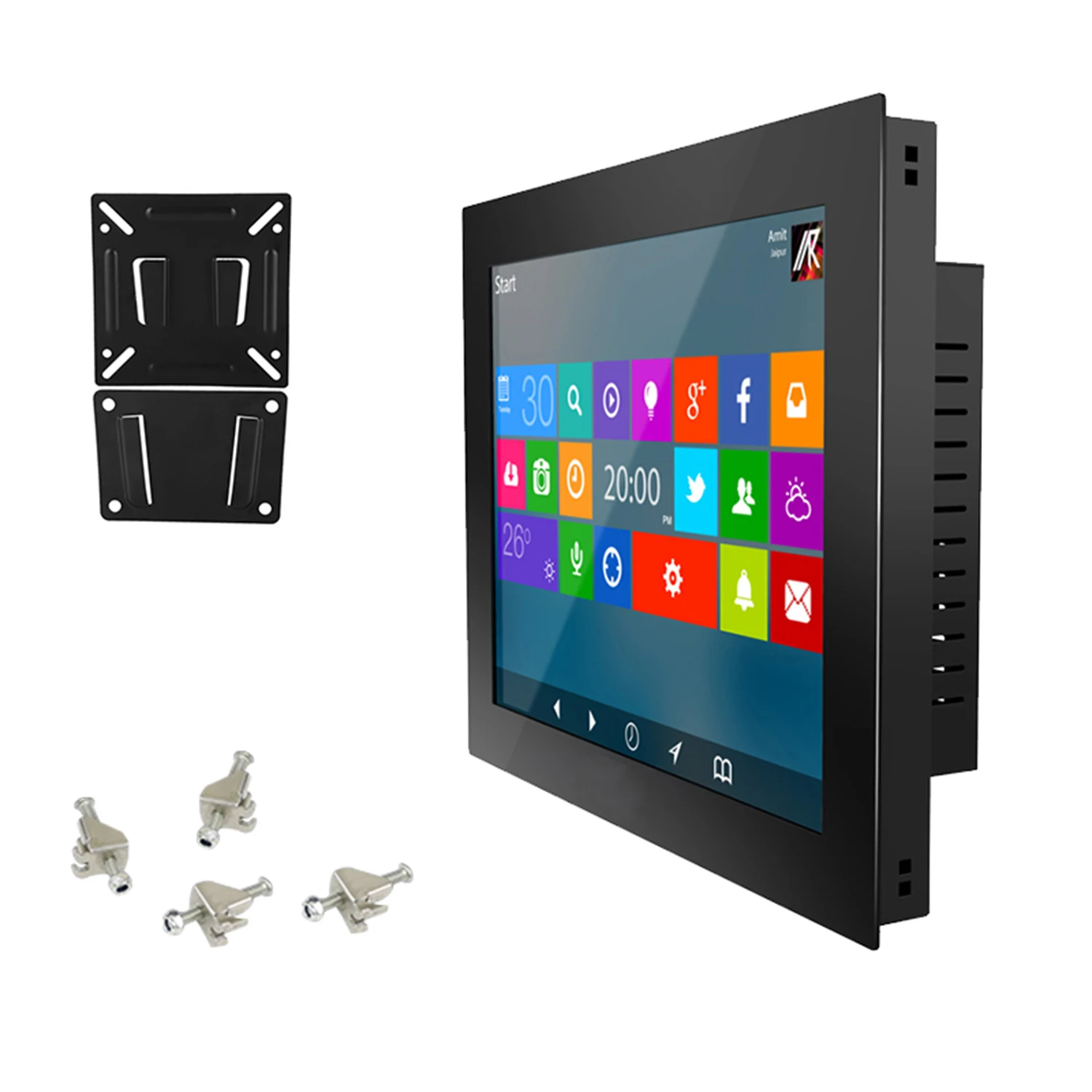

Q: What is the standard installation method?
A: Embedded, wall-mounted

Q: Does it support desktop installation?
A: Yes, but you need to buy a desktop stand

Q: Why do I need to activate after reinstalling the system or upgrading?
A: Our default system is a cracked version, and does not support upgrading or reinstalling the system. If you need a genuine system, please contact us to buy it or buy it yourself.
